In the era of AI boom and data explosion, a tiny chip—NAND Flash—is indispensable for everything from photos and videos on smartphones, system software on computers, to massive data in data centers and driving data in smart vehicles. As a non-volatile storage medium that retains data without power, it underpins half of the global solid-state storage market and serves as an essential "data warehouse" for the digital world.

1. Core Introduction to NAND Flash

NAND Flash is a type of non-volatile memory that preserves data without continuous power. Featuring high density, low power consumption, shock resistance, and high-speed read/write performance, it has fully replaced traditional mechanical storage and become a standard core component in consumer electronics, industrial control, data centers, and automotive IoT.

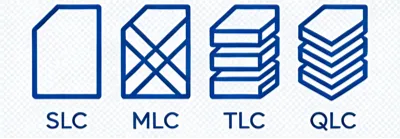

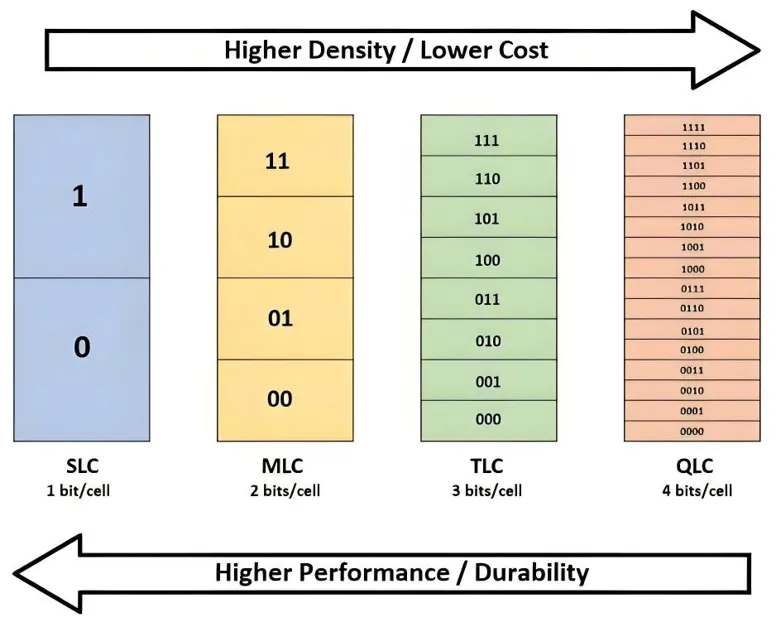

1.1 Core Types: From SLC to QLC for All Scenarios

NAND is classified by bits per cell, balancing endurance, performance, cost, and capacity:

SLC (1 bit/cell): ~100,000 program/erase cycles, fastest speed, highest stability, extremely high cost. Used in enterprise, industrial, and high-reliability embedded applications.

MLC (2 bits/cell): 3,000–10,000 cycles, balanced performance and cost. Suitable for high-end consumer, networking, POS, and industrial terminals.

TLC (3 bits/cell): 1,000–3,000 cycles, the king of cost-performance. Dominates consumer SSDs and mobile UFS/eMMC.

QLC (4 bits/cell): 100–1,000 cycles, ultra-large capacity, ultra-low cost. Ideal for high-capacity storage drives, cold data storage, and AI inference cache.

Technology Trend: Evolution from SLC to QLC boosts cell density and reduces cost. Combined with 3D stacking (over 300 layers), it achieves breakthroughs in capacity, speed, and power to meet massive data demands in the AI era.

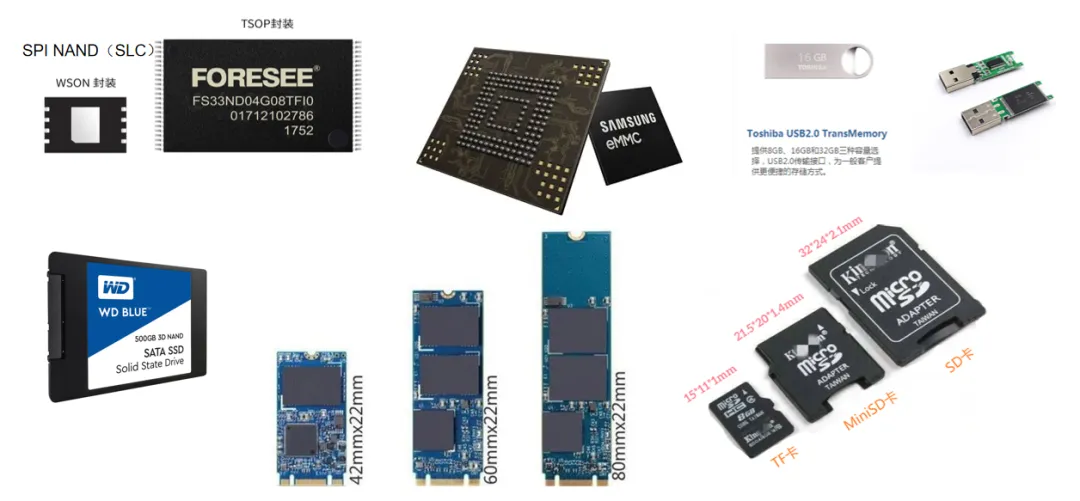

1.2 Main Product Forms: Ubiquitous Across All Devices

eMMC (Embedded MultiMediaCard): Integrates NAND and controller with parallel interface. Low cost and low power, widely used in mid-to-low-end phones, tablets, and smart TVs.

UFS (Universal Flash Storage): Serial full-duplex interface, much faster than eMMC. Mainstream high-performance storage for high-end smartphones and tablets.

M.2/NVMe SSD (Solid State Drive): Based on PCIe+NVMe protocol, breaking transmission bottlenecks. Core high-speed solution for PCs, laptops, and servers.

Memory Cards/USB Drives: Standard SD/USB interfaces, highly portable and universal. The most common mobile storage media.

1.3 All-Scenario Applications: Penetrating Every Corner of Digital Life

Consumer Electronics: Smartphones, tablets, laptops, and game consoles store systems, apps, and user data.

Computer Storage: SSDs fully replace HDDs as the mainstream high-speed storage for PCs and servers.

Data Centers: Enterprise SSDs power cloud computing, big data, and AI with massive high-speed throughput.

IoT & Automotive: Wearables, smart home, and in-vehicle systems rely on embedded NAND for firmware and runtime data.

2. Recommended NAND Flash Vendors

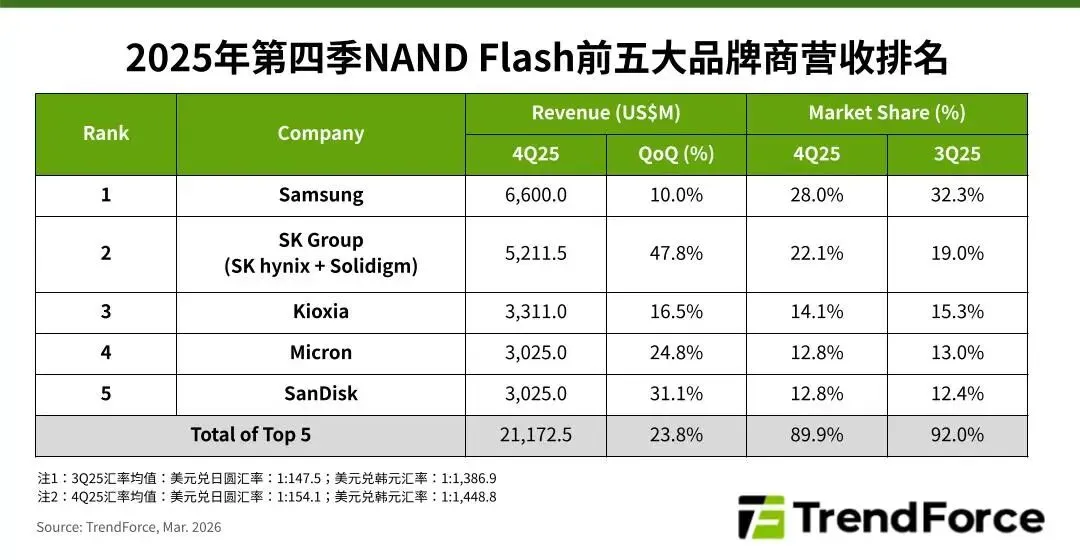

The NAND market features oligopoly plus the rise of domestic players. In Q4 2025, global leaders maintained top shares, while Yangtze Memory Technologies (YMTC) emerged strongly as a benchmark for domestic storage.

Global Leading Manufacturers

Samsung: 28% share, global No.1, revenue $6.6 billion. Strengths: Full-stack R&D, leading 3D V-NAND (128–236 layers in mass production), full coverage of consumer and enterprise markets, top-tier performance, stability, and efficiency. Applications: High-end SSDs, mobile UFS, enterprise core storage, AI servers.

SK hynix: 22.1% share, global No.2, revenue $5.212 billion. Strengths: Mass-produced 321-layer QLC, industry-leading layer count, high density and efficiency, strong performance in servers and mobile. Ideal for AI inference and high-capacity storage. Applications: AI servers, high-end consumer, large-capacity data center storage.

Kioxia: 14.1% share, global No.3, revenue $3.311 billion. Strengths: Mature and stable BiCS architecture, outstanding reliability in automotive, industrial, and enterprise. Long-term focus on industrial and automotive-grade markets. Applications: Industrial control, smart vehicles, high-reliability embedded, enterprise storage.

SanDisk (Western Digital): 12.8% share, revenue $3.025 billion. Strengths: Top consumer reputation, full lineup of USB drives, memory cards, SSDs, high cost-performance, strong compatibility, significant performance gains with BiCS8 3D NAND. Applications: Consumer SSDs, mobile storage, general embedded devices.

Micron: 12.8% share, revenue $3.025 billion. Strengths: Deep enterprise and industrial expertise, stable global supply chain, mature automotive and industrial solutions. Applications: Servers, industrial automation, automotive-grade storage, high-end PCs.

Domestic Storage Benchmark

YMTC (Yangtze Memory Technologies): ~11% share, global No.6. Expected to enter top 3 by end-2026; quarterly revenue exceeds 20 billion yuan, doubling YoY. Strengths: World-leading Xtacking architecture, mass-produced 294-layer stacking, performance on par with global leaders, stable supply, high cost-performance. Core force for domestic substitution. Applications: Domestic PCs, servers, surveillance, industrial equipment, smart terminals.

Top Domestic Module Manufacturers

GigaDevice: Leader in SPI NAND and embedded storage, strong in IoT.

Netac, Longsys, Memblaze: Experts in enterprise SSDs and storage modules, focused on data centers and industrial markets.

Macronix: Benefited from Samsung’s exit from MLC market; NAND revenue in Q1 2026 +382% YoY, +90% QoQ. Booming growth in small-capacity SLC/eMMC.

3. NAND Flash Industry Trends

In Q1 2026, the NAND Flash industry entered its strongest boom cycle ever. Driven by surging demand for AI servers and enterprise SSDs, controlled capacity and inventory reduction by vendors, and tight supply due to capacity shifting to HBM, the market saw volume and price rise simultaneously. High prosperity is expected to continue throughout the year with prices staying high.

Demand is led by enterprise, with steady recovery in consumer sectors. AI large models, cloud computing, and data centers become the primary growth engine. While consumer areas like mobile phones and PCs face short-term pressure, long-term demand remains solid with upgrades to UFS, NVMe, etc.

Competitively, the global market is still dominated by the top five: Samsung, SK hynix, Kioxia, Western Digital, Micron (CR5 ~90%). With over 10% market share, YMTC is ramping up quickly in high-end 3D NAND, domestic substitution, and server storage, and is expected to rank among the top three globally by end-2026, reshaping the industry landscape.

Technologically, the roadmap is clear:

3D stacking upgrading to over 300 layers

QLC becoming mainstream for high capacity

TLC solidifying as consumer mainstay

SLC/MLC focusing on high-reliability specialized scenarios

Layer count, density, cost, and yield will be the key competitive factors in the future.
